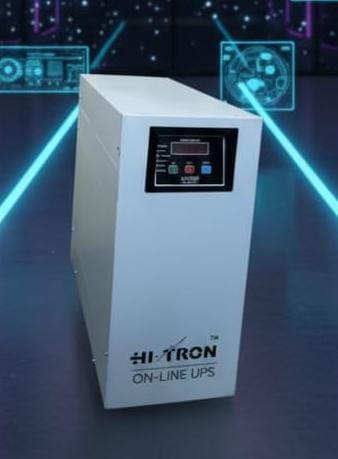

Single /Three Phase ON-LINE UPS
Single /Three Phase ON-LINE UPS
Technical specifications
| Model | TL500 / TL650/TL1K/TL1.5K/TL2K/TL3K |
| INPUT | |
| Input Voltage | Single Phase, 230V AC |
| Input Volt. Range | 160v-280v ac (Wider Range 120V-290V also availble) |
| Input Freq. | 50hz +/- 10% |
| DG set compatibbility | Suitable for both Mains Supply /DG Set Supply |
| OUTPUT | |
| Voltage v | Output Window 195V -250V (Automatic AVR function) |
| Frequency regulation | Synchronised to mains Frequency |
| Inverter Mode | |
| Output Volt. | Single Phase, 220V/230V AC |
| Voltage Regulation | 230V + 3% |
| Frequency regulation | 50 Hz + 0.5 |
| Waveform | Pure Sine Wave |
| THD Volt | Less than 5% |
| Transfer Time | Less than 5 milli Seconds (Typical) |
| BATTERY | |
| DC Bus Voltage | 12V/24V/48V DC |
| Re-charge Time | 8 hours for 90% charging |
| PROTECTION | |
| Overload | 110% for 2min, |
| Short circuit | Electronics protection in Inverter Mode, Fuse /MCB in Mains Mode |
| Battery Low | Protection Available |
| visual indicators /alarms | |
| Indication (LED) | Mains ON , Battery Mode , Battery Low |
| Overload , Battery Charging , Battery Level | |
| Alarm | Battery Low, Overload, Mians Fail, Fault |
| GENERAL | |
| Audible Noise | Less Than 45dB |
| Operating Temp Ranfe | 0 degree C- 45degree C |
| Relative Humidity | 0-95% NON- CONDENSING |
| Cold Start | Available |
| Communication Port with Siftware Interface | |
| Communication Interface | R232/DB9 provided- Optional |
* These specifications are for a Standard Product. Customized specifications can be offered against specific requirements.
